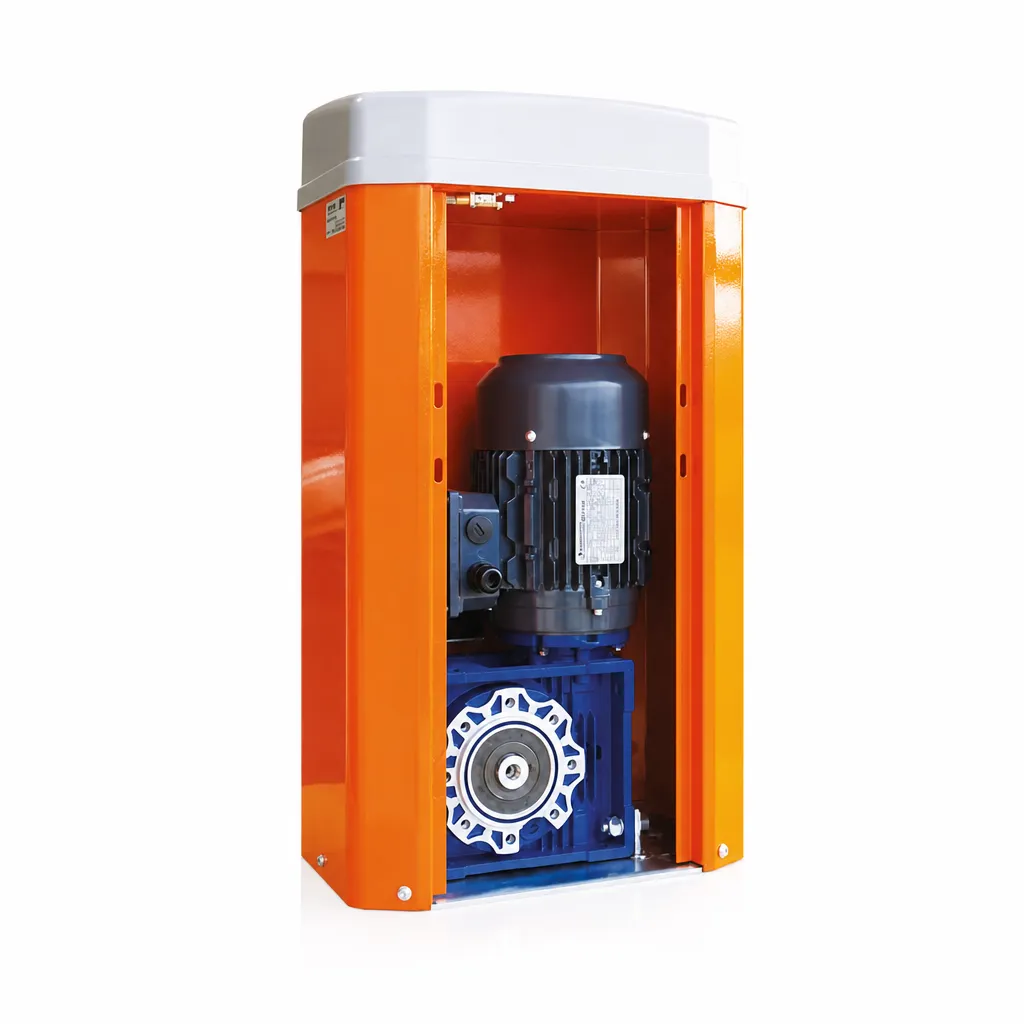

Τριφασικό μοτέρ για μέγιστο βάρος 5000 κιλών. Κατασκευασμένο στην Ιταλία από την VDS Automationi.
- Leaf weight 5000 Kg
- Structure in painted steel and stainless steel, cover in abs
- Steel and bronze gears obtained from solid
- Air-cooled engine and reduction in bath of oil
- Available with and without control unit
- External control unit with watertight box
- High-performance electric motor
- Available with mechanical limit switches
- Release device with hex wrench
- Very quiet operation
- Motor not provided with clutch, provide with safety equipment
- Safety microswitch motor door
- Three phase motor 230 – 400Y vac
Technical features
| POWER SUPPLY | 230Δ – 400Y Vac |
| LEAF WEIGHT | 4000 KG – 380V* – 5000 KG TRIPHASE INVERTER |
| PINION | Z20 |
| ENGINE RPM | 1400 RPM |
| AVERAGE ABSORPTION | 2,5 A |
| ABSORBED POWER | 750 W |
| OPERATOR WEIGHT | 40 KG |
| NOISE LEVEL | < 30 DBA |
| ENVIRONMENTAL CONDITIONS | -25/+70° C |
| DEGREE OF PROTECTION | IP54 |
| LIMIT SWITCH | Electromechanical |
Περισσότερα εδώ
